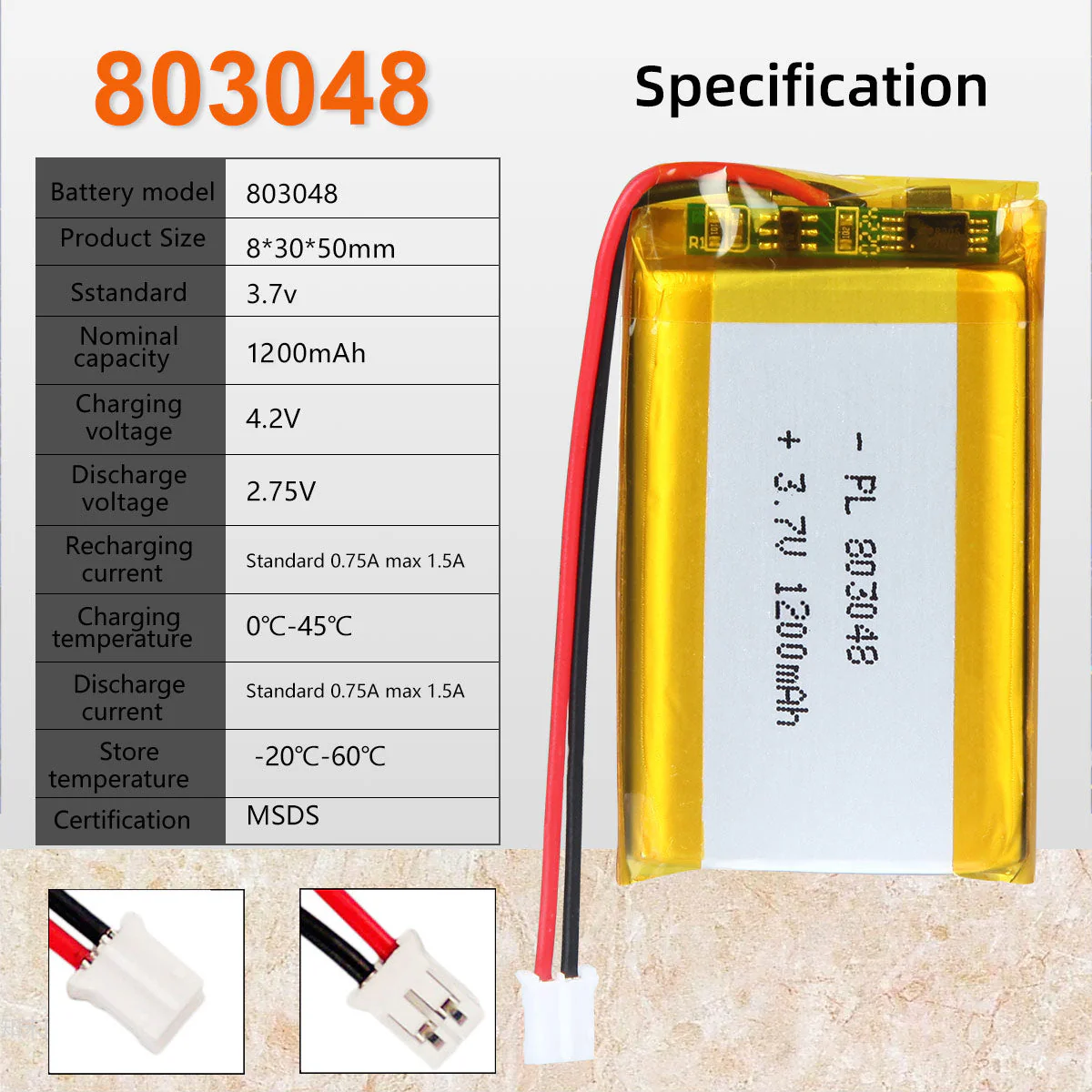

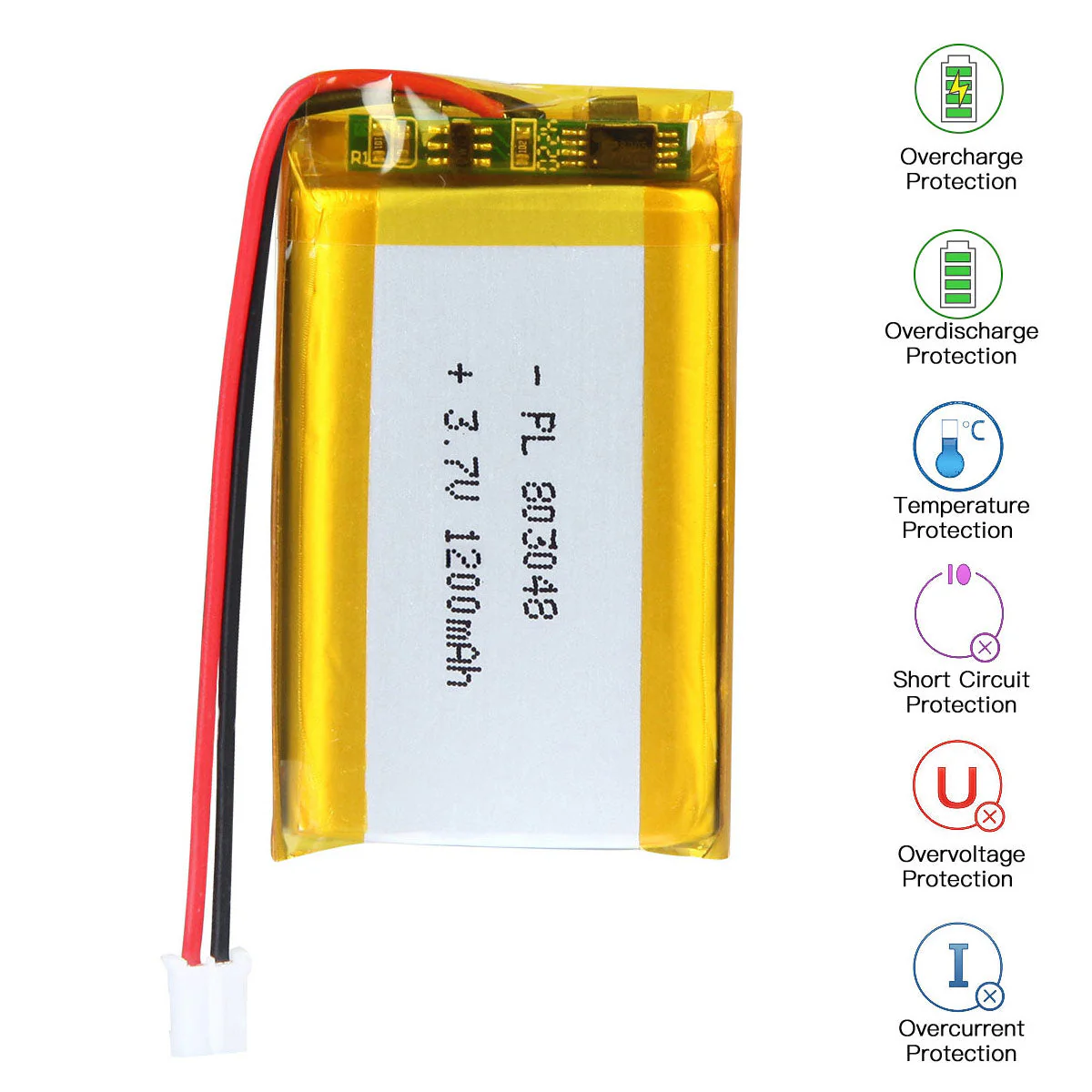

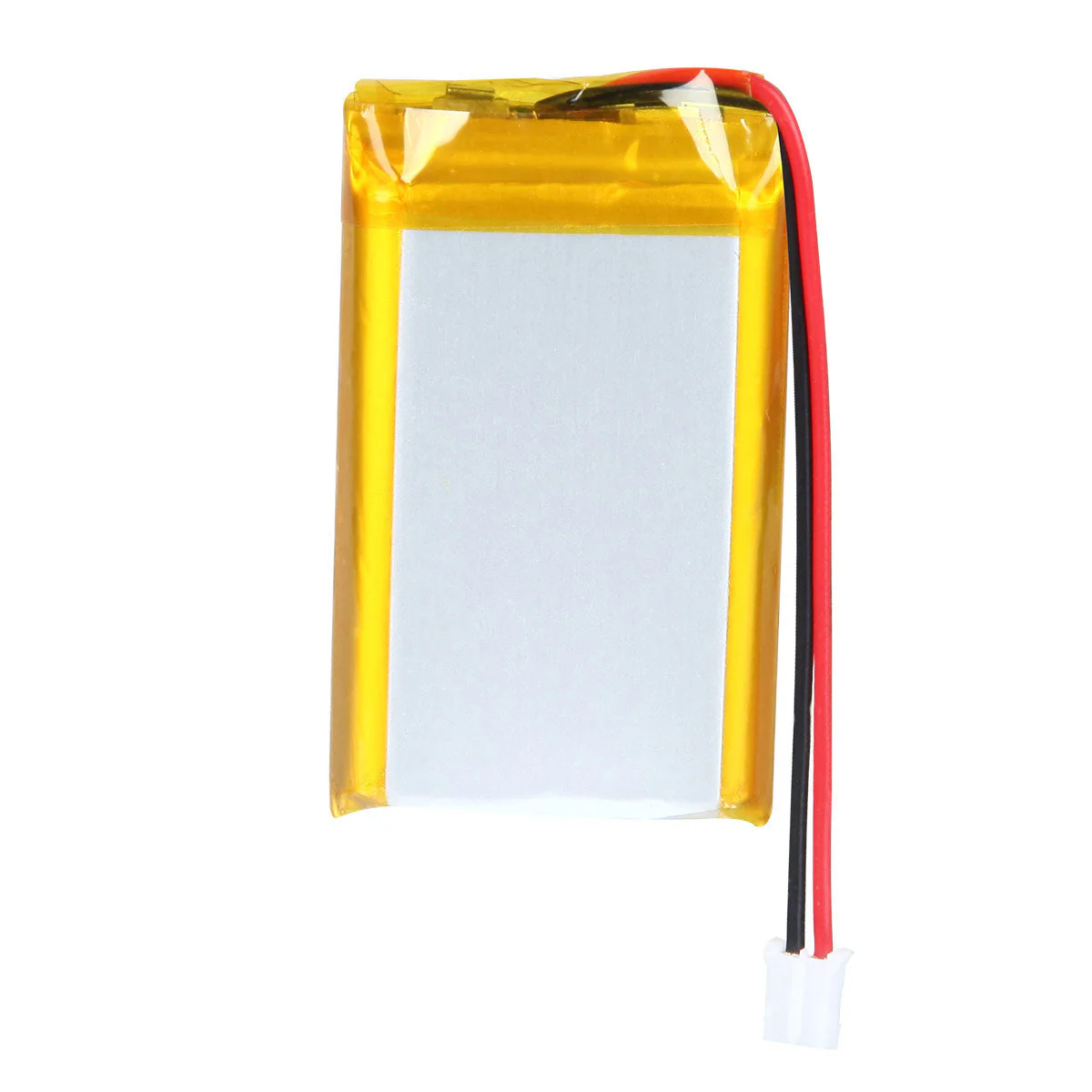

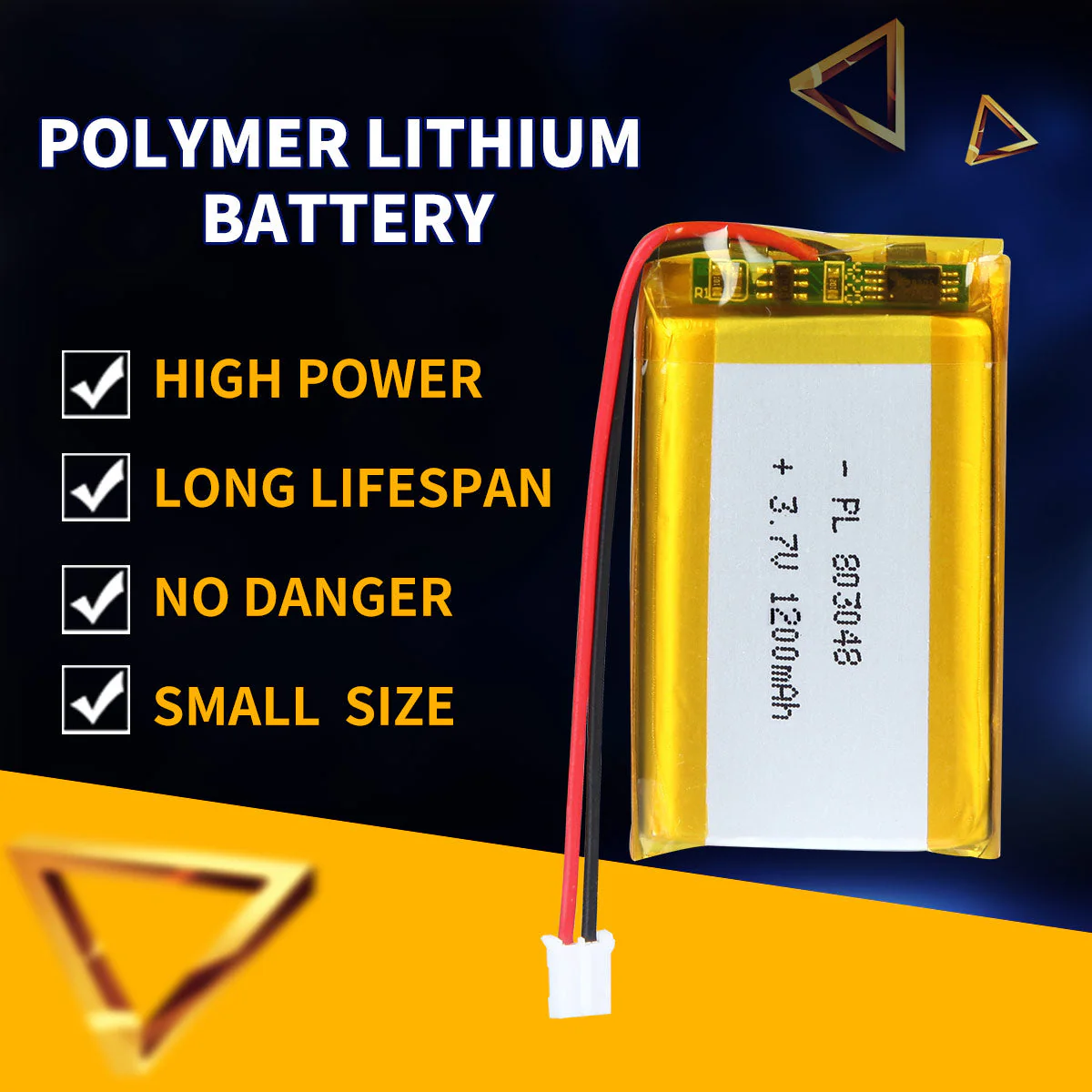

YDL 3.7V 803048 1200mAh Lithium Polymer Battery
|
Item |
Specification |
|
Product Name |
803048 3.7v 1200mah rechargeable polymer battery |
|
Battery model |
YDL803048 |
| Max Size | 8x30x50 mm (Thickness x Wideth x Length) |
|
Nominal voltage |
3.7V |
|
Minimum capacity |
1200mAH (0.2C discharge) |
|
Charging cut-off voltage |
4.2V |
|
Discharging cut-off voltage |
2.75V-3.0V |
|
Standard charging |
0.2C /4.2V |
|
Max charging |
1.0C /4.2V |
|
Standard discharging |
0.2C/2.75V-3.0V |
|
Max discharging |
1.0C/2.75V-3.0V |
|
Shipment voltage |
ā„3.85V |
|
Battery pack impedance |
ā¤80mĪ© |
|
Operating temperatureĀ |
Charging: 0Ā°C ~ 45Ā°C |
|
Discharging: -20Ā°C ~60Ā°C |
|
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )Ā Ā |
-10ā~25ā (12 months ā„85% ) |
| -10ā ~45ā (6 months ā„85% ) | |
| -10ā~55ā (1 month ā„90% ) | |
| 20Ā±5ā is the recommended storage temperature | |
|
Visual Inspection |
There should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
Reference standard |
GB/T 18287-2013, KC, CE, ROHS, IEC/EN62133 UL1642, MSDS, CB, PSE |
Original: $3.50
-65%$3.50
$1.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
|
Item |
Specification |
|
Product Name |
803048 3.7v 1200mah rechargeable polymer battery |
|
Battery model |
YDL803048 |
| Max Size | 8x30x50 mm (Thickness x Wideth x Length) |
|
Nominal voltage |
3.7V |
|
Minimum capacity |
1200mAH (0.2C discharge) |
|
Charging cut-off voltage |
4.2V |
|
Discharging cut-off voltage |
2.75V-3.0V |
|
Standard charging |
0.2C /4.2V |
|
Max charging |
1.0C /4.2V |
|
Standard discharging |
0.2C/2.75V-3.0V |
|
Max discharging |
1.0C/2.75V-3.0V |
|
Shipment voltage |
ā„3.85V |
|
Battery pack impedance |
ā¤80mĪ© |
|
Operating temperatureĀ |
Charging: 0Ā°C ~ 45Ā°C |
|
Discharging: -20Ā°C ~60Ā°C |
|
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )Ā Ā |
-10ā~25ā (12 months ā„85% ) |
| -10ā ~45ā (6 months ā„85% ) | |
| -10ā~55ā (1 month ā„90% ) | |
| 20Ā±5ā is the recommended storage temperature | |
|
Visual Inspection |
There should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
Reference standard |
GB/T 18287-2013, KC, CE, ROHS, IEC/EN62133 UL1642, MSDS, CB, PSE |
